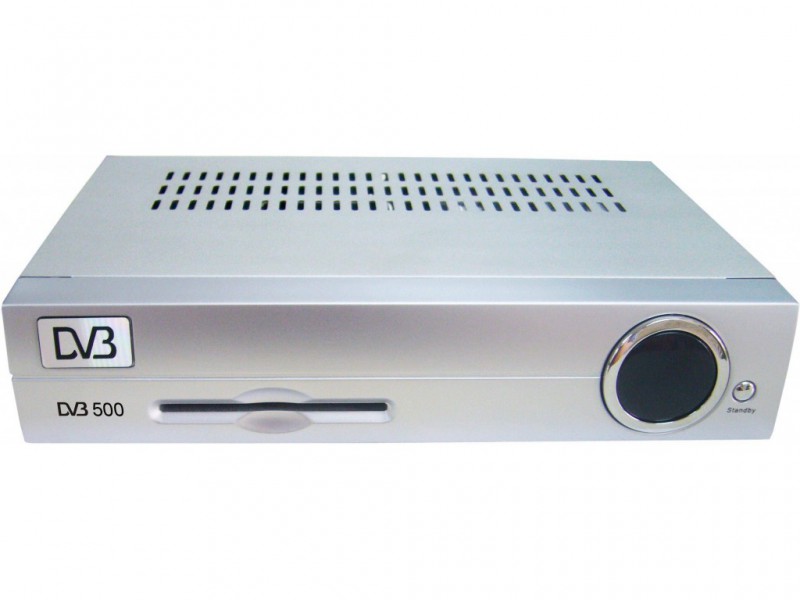

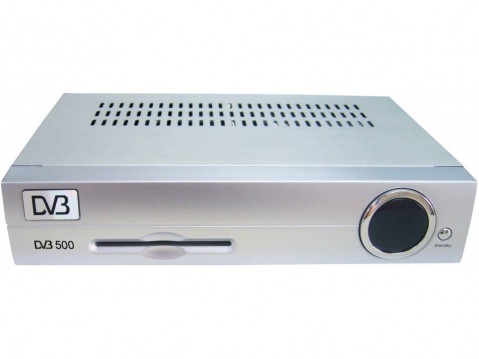

CubiBox 500S. Receptor satelite Enigma 1

El CubiBox 500S es un receptor satélite compatible con imágenes Enigma 1. Se entrega con una imagen libre con soporte Enigma 1.

Soporta los plugins más populares de Enigma 1, como CCam.

Características técnicas

1)250 MHz IBM PowerPC Processor (350 Mips)
2)Linux Operating System
3)1 x Smartcard-Reader
4)MPEG2 Hardware decoding
5)100Mbit full duplex Ethernet Interface
6)2 LED status
7)unlimited channel lists for TV/Radio
8)channel-change time < 1 second
9)full automatic service scan
10)supports directly bouquet-lists (indirect unlimited)
11)supports EPG (electronic program guide)
12)supports multiple LNB-Switching control (supports DiSEqC)
13)fully adaptable OSD in many languages (skin-support)
14)SPDI/F Interface for digital bit stream out (AC-3 / DTS)

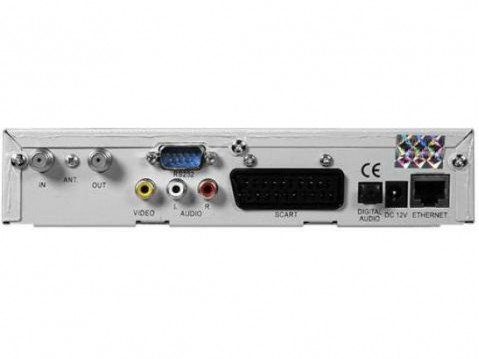

15)1 x Scart-interfaces (fully controlled by software)

Technical Specification:

DBS-Tuner:
Frequency Range 950. 2150 MHz
Signal Level - 65 dBm. - 25 dBm
Signal-to-Noise Level 12 dB max.
DBS-Tuner Input Connector F-Type female
Input Impedance 75 Ohm
AFC +/- 3 MHz
Demodulation Shaped QPSK
Input Symbol rate 2. 45 Mbaud/s, SCPC / MCPC
FEC Viterbi and Reed-Solomon
Viterbirate 1/2, 2/3, 3/4, 5/6, 7/8, automatic assimilation
Roll-off Factor 35 %
Demultiplexing according ISO 13818-1

Video decoder:
Video Compression MPEG-2 and MPEG-1 compatible
Video Standard PAL G/ 25 Hz
Video Formats 4:3 / 16:9
Footage 16:9, automatic assimilation for 16:9 TV-Device (over Scart)
Letterbox precolating for 4:3 TV-Device

Audio decoder:
Audiokompression MPEG-1 & MPEG-2 Layer I and II
Audio Mode Dual (main/sub), Stereo
Frequency: 32 kHz, 44.1 kHz, 48 kHz, 16 kHz, 22.05 kHz, 24 kHz

Output analog:
Output Level L/R 0,5 Vss on 600 Ohm
THD > 60 dB (1 kHz)
Crosstalk < -65 dB

Output digital:
Output Level 0,5 Vss on 75 Ohm
Sampled Data Filtering 32 kHz, 44.1 kHz, 48 kHz
S/PDIF-Output optical (AC3)

Video parameter:
Input Level FBAS 1 Vss +/- 0.3 dB on 75 Ohm
Teletext filter in conformity with ETS 300 472 Standard

TV-Scart:
Output: FBAS,RGB,S-VHS over OSD selectable

Serielle Interface RS 232:
Typ RS232 bidirectional
Bit rate 115,2 kBit/s max.
Plug Connector SUB-D-9
Function Update of Firmware and Preprogramming

Ethernet:
100 MBit compatible, bi-direktional interface
Function Update of Firmware and Preprogramming

LNB Power and polarisation:
LNB Current 500mA max. ; short-circuit-proof
LNB Voltage vertical < 14V without load, > 11,5V at 400mA
LNB Voltage horizontal < 20V without load, > 17,3V at 400mA
LNB shut-off at Standby-Mode

Count of active satellite position:
DiSEqC 1.0/1.2 SAT POSITION / SAT OPTION
DiSEqC - Rotor Control

Power consumption:
< 10W / 12V

Input voltage:
DC12V,alternating acurrent +/- 15%

Extern power supply:
Input:
110-240V AC / 50-60Hz / 0,6A
Output:
12V = / 1A

Others:
Ambient Temperature +15C...+35C
Humidity < 80%

Nota sobre garantías

Productos que presenten un mal funcionamiento por haberles cambiado la versión de firmware no entran en garantía, y su reparación será conforme a las tarifas de servicio técnico en vigor.
